Environmental Data Analysis and Visualization

Finding Data

Quick review

What can we do to improve this code?

#create a variable of 500 numbers from a standard normal distribution

x<-rnorm(0,1)

#create another variable from the same data but squared

x^2

#make it into a scatter plot

scatterplot(x,y)

Quick review

What can we do to improve this code?

#create a variable of 500 numbers from a standard normal distribution
x<-rnorm(500,0,1)

#create another variable from the same data but squared
y<-x^2

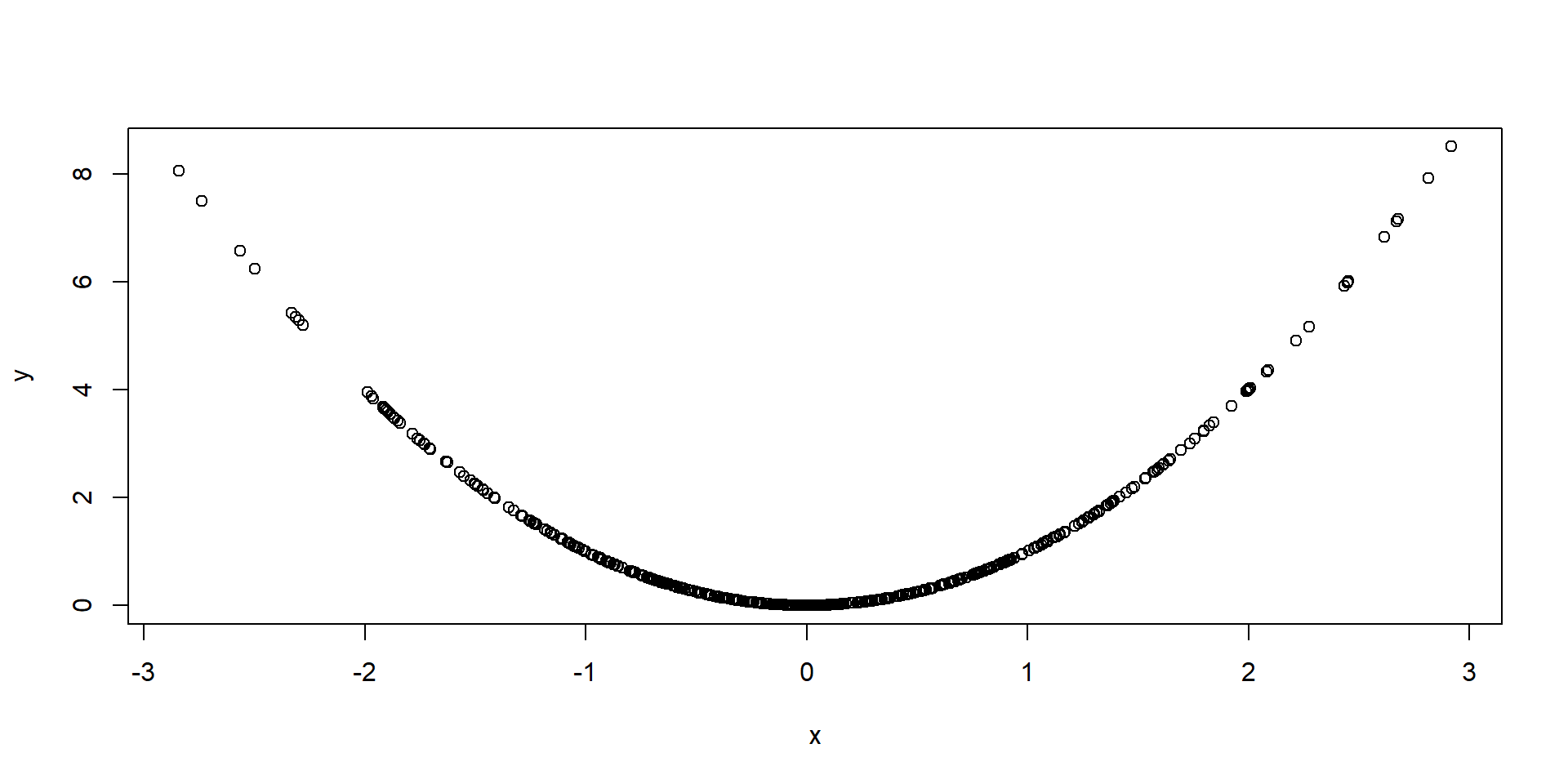

#make it into a scatter plot
plot(x,y)

Quick review

What can we do to improve this code?

#create a variable of 500 numbers from a standard normal distribution
x<-rnorm(500,0,1)

#create another variable from the same data but squared
y<-x^2

#make it into a scatter plot
plot(x,y)

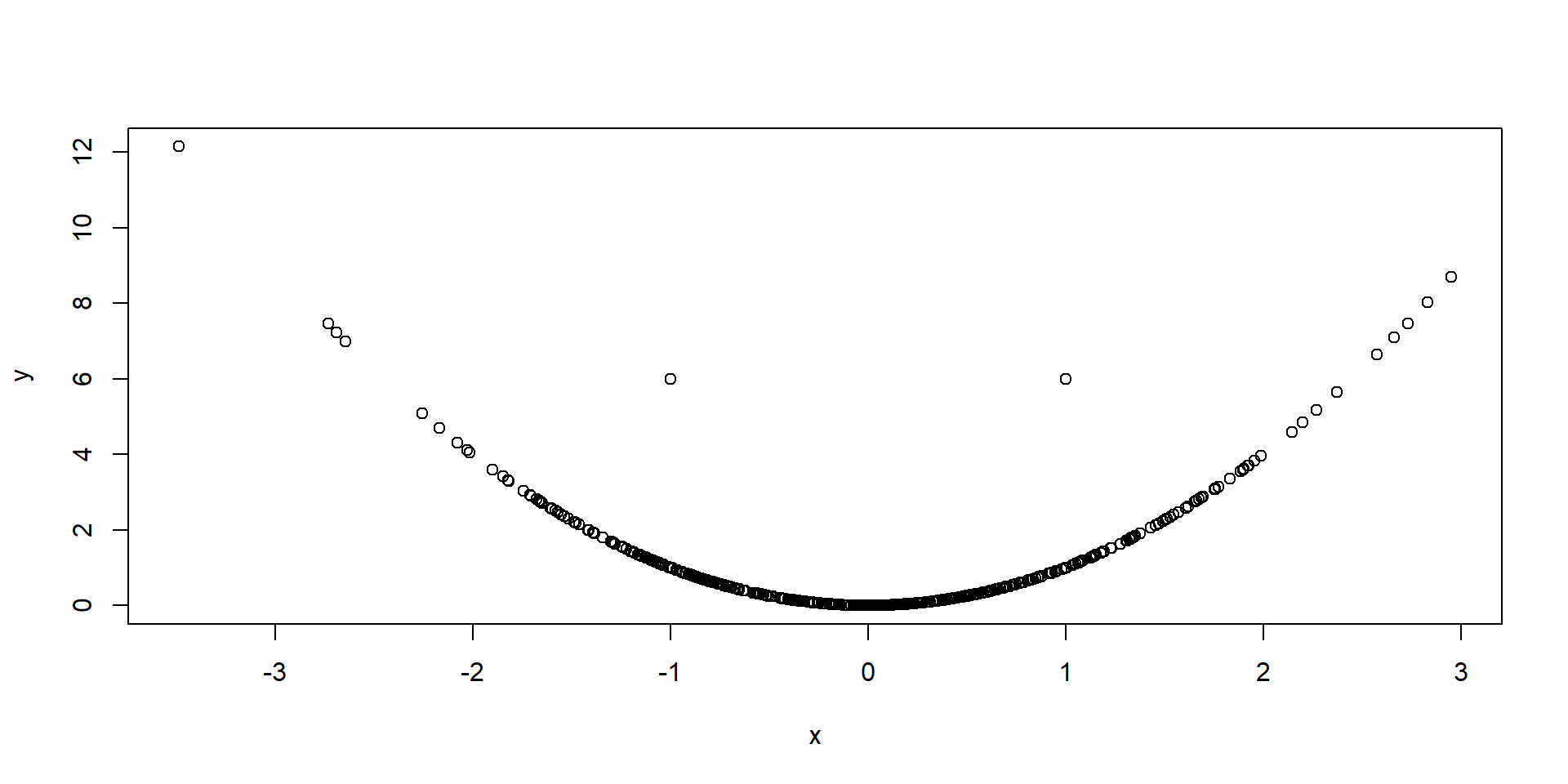

points(c(-1,1),c(6,6))

Sensor of the day

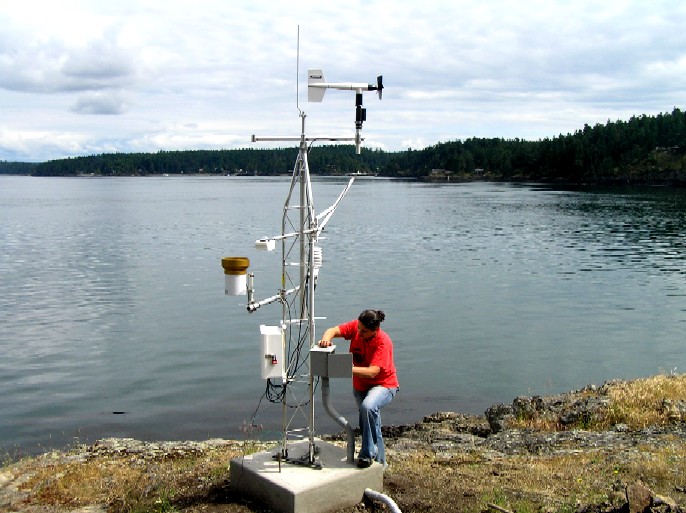

Weather stations!

Sensor of the day

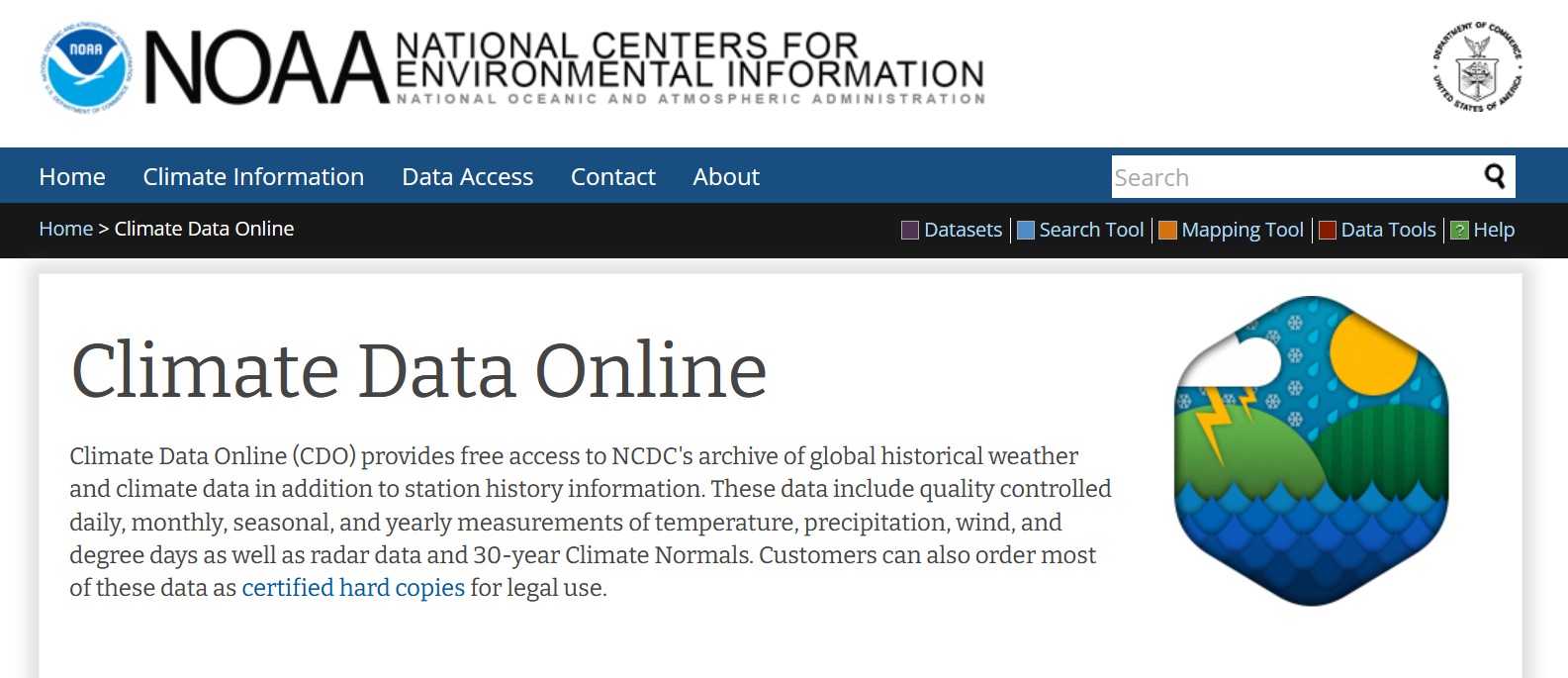

NOAA Climate Data Online

Sensor of the day

Instruments may include:

  • Thermometer: Temperature

  • Rain gauge: Precipitation

  • Barometer: Atmospheric pressure

  • Anemometer: Wind speed

  • Wind vane: Wind direction

  • Pyranometer: Solar radiation

Finding data

The main assignment for this course will involve conducting your own data analysis and visualization using data of your choice.

Finding data

The main assignment for this course will involve conducting your own data analysis and visualization using data of your choice.

That data is out there, somewhere, waiting for you…

What kind of data?

Data are most useful when they are in machine-readable formats

  • .csv, .tsv, .txt, .ncdf, .jpg, .tiff, .xml, .kml, .shp

What kind of data?

Data are most useful when they are in non-proprietary, widely-used formats

Activity: Take the Weather With You

Visit the Climate Data Online portal: https://www.ncei.noaa.gov/cdo-web/

  • Choose Browse Datasets, expand Daily Summaries, then click Search Tool

  • Search for station data in any part of the world and add it to your cart

  • Select the option to download a Custom GHCN-Daily CSV and choose the data types you want to include

  • Download it to your computer, move it to the appropriate spot in your file system, then read it into R using read_csv

Reliable sources

Primary data often come from government clearinghouses (.gov), research institutions (.edu), or from non-governmental organizations (.org)

Example 1

Published alongside research publications (Figshare, Zenodo, etc.)

Example 2

Data that you or someone you know collects

Example 3

Metadata

Metadata are data about data.

Metadata

Metadata are data about data.


These are tell us things like how the data were collected, by whom, when, how it is structured, etc.

Examples of metadata


Example 1: CDO Daily Summaries

Example 2: USGS Earthquake Archives

Metadata make data FAIR

  • Findable: Metadata make it much easier to find relevant data.

  • Accessible: Metadata indicate how data can be accessed, possibly including authentication and authorization.

  • Interoperable : Assigning metadata enables a data set to be integrated with other data.

  • Re-usable: Well-described data can be used by others!

Activity: The hunt for more data

On Canvas, there is a page listing data sources you might use in this course.

Choose 2 sources of interest and download some data, ideally stored in .csv or similar, but if it’s something else we can try and figure it out

Store the data somewhere that makes sense for your file system so you can come back to it.

Be prepared to answer the following questions:

  • What was the data?

  • How easy was it to figure out the interface? Did anything trip you up?

  • Were there any metadata that accompanied the data?

Messy data

Data often comes with issues caused by data entry error, poor data collection decisions, or use of outmoded or proprietary formats.

https://openscapes.org/blog/2020-10-12-tidy-data/

Next week

  • What makes a good visualization?

  • Visualizing quantities and distributions

  • Introducing ggplot2 and the grammar of graphics
