Environmental Data Analysis and Visualization

Getting a Clearer View

Visualization Critique

https://ourworldindata.org/grapher/share-of-the-population-with-access-to-electricity

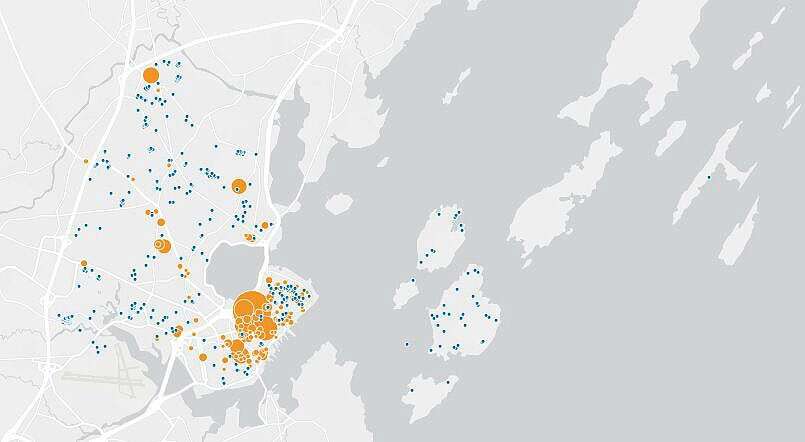

Visualization Critique

City of Portland via https://www.mainebiz.biz/article/portland-housing-production-exceeds-citys-target-but-affordability-remains-a-problem

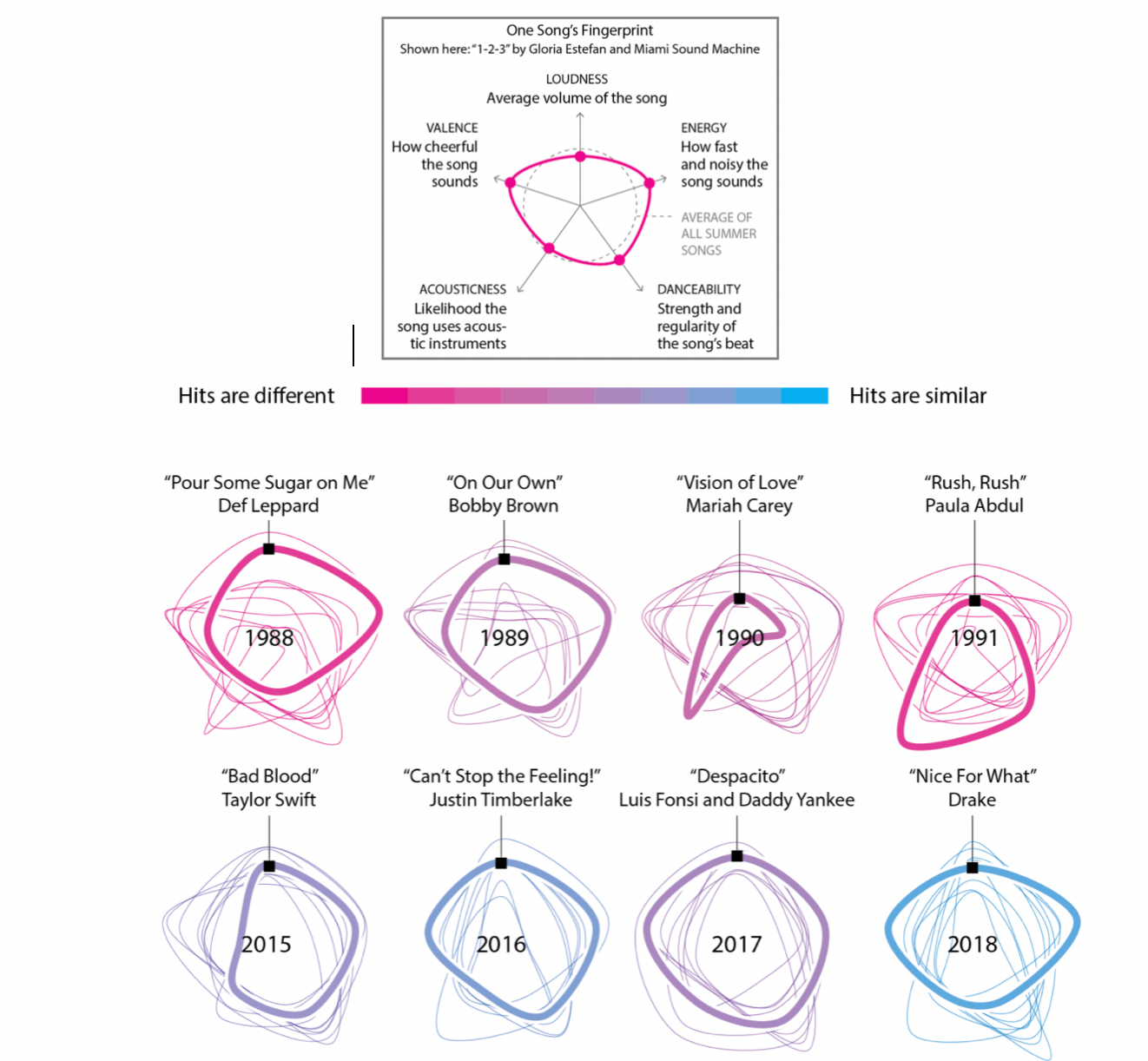

Visualization Critique

https://www.nytimes.com/slideshow/2020/06/10/learning/graphs-charts-and-maps-from-three-years-of-whats-going-on-in-this-graph/s/SimilarSongsLN1.html

Learning how to look

University of Wollongong

Getting a clearer view

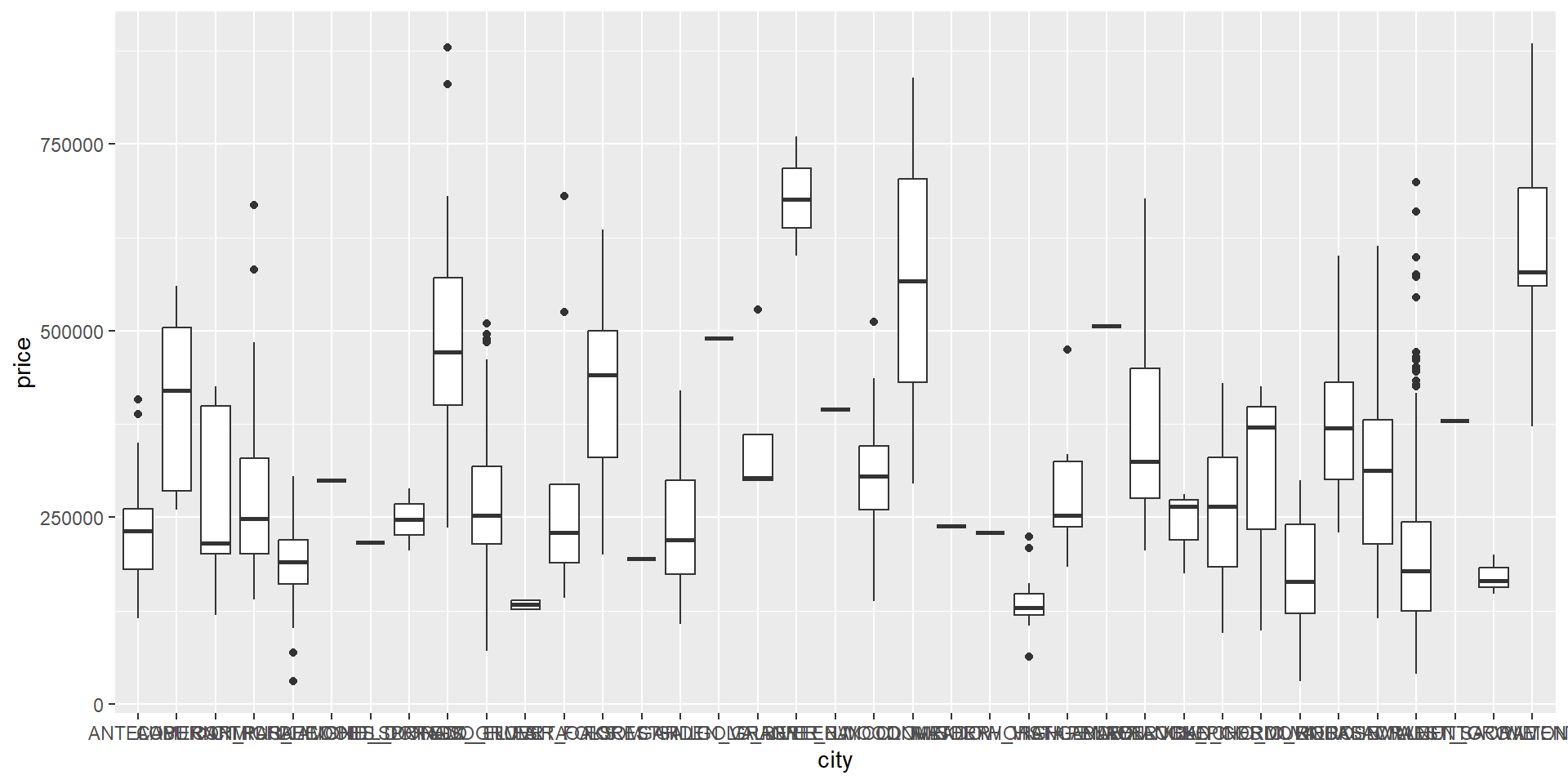

ggplot(data=Sacramento,aes(x=city,y=price)) +
  geom_boxplot()

Getting a clearer view

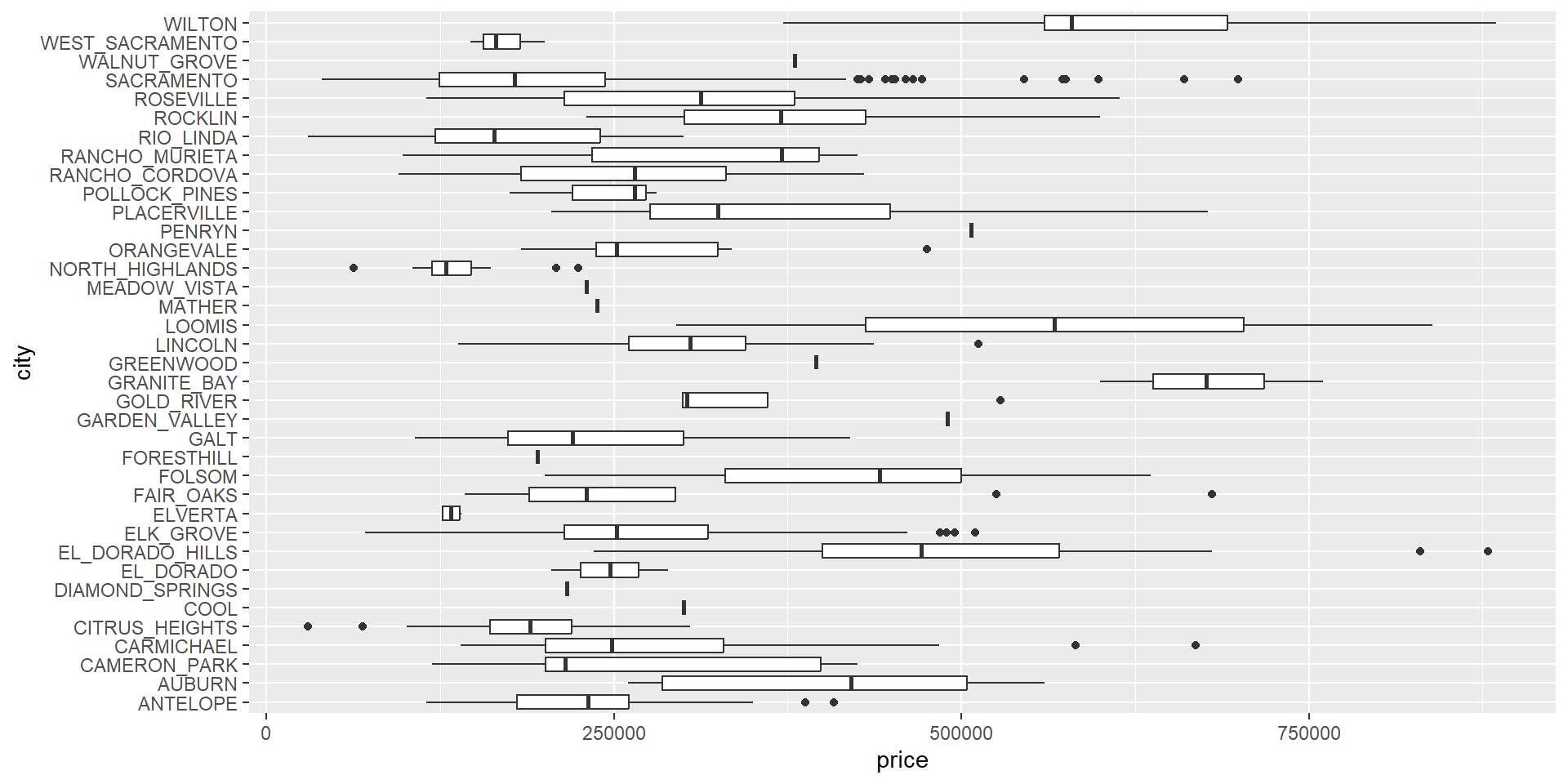

Flip x and y axes

ggplot(data=Sacramento,aes(x=city,y=price)) +
  geom_boxplot() +
  coord_flip()

Getting a clearer view

Resize axis labels

Getting a clearer view

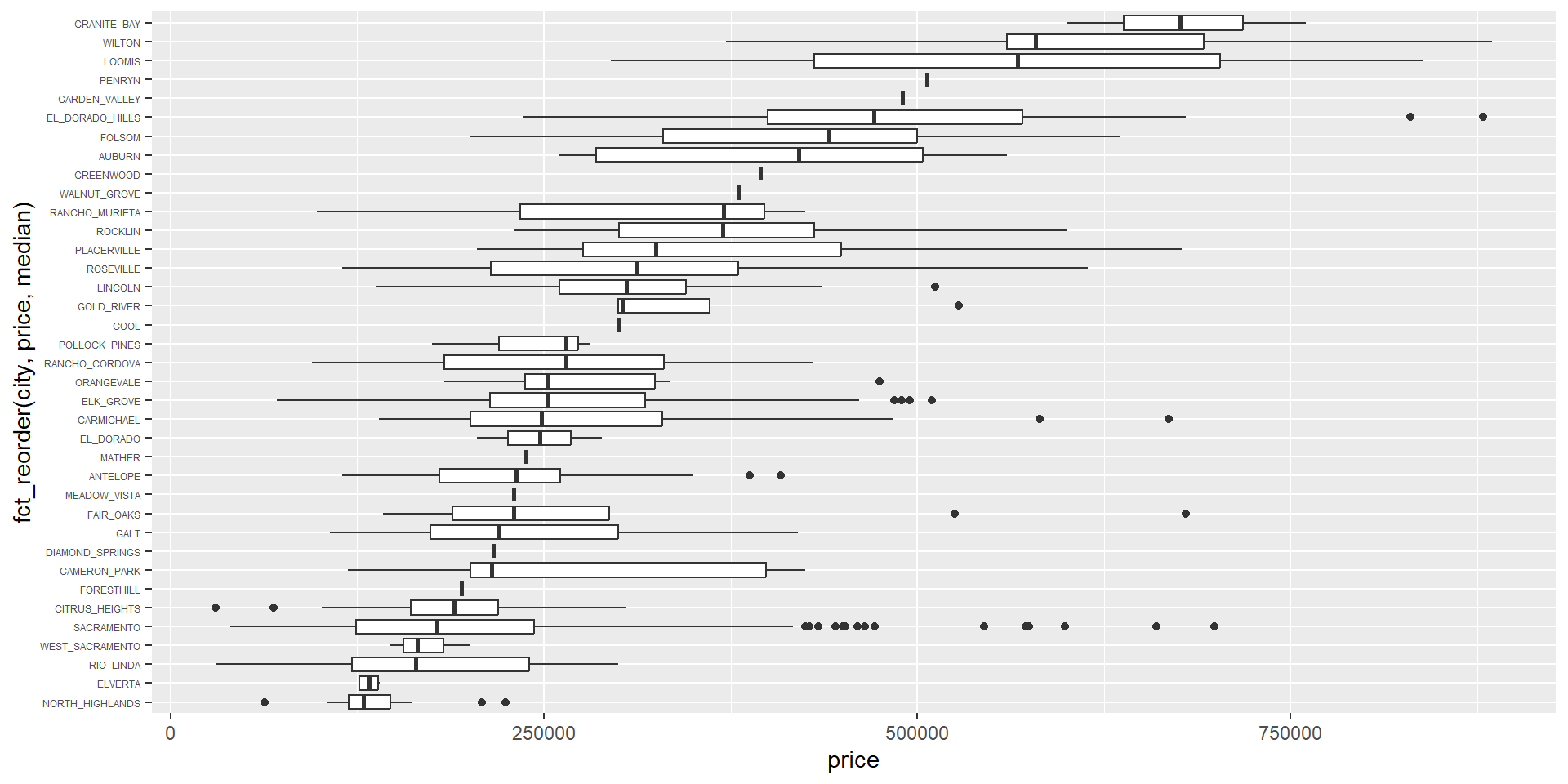

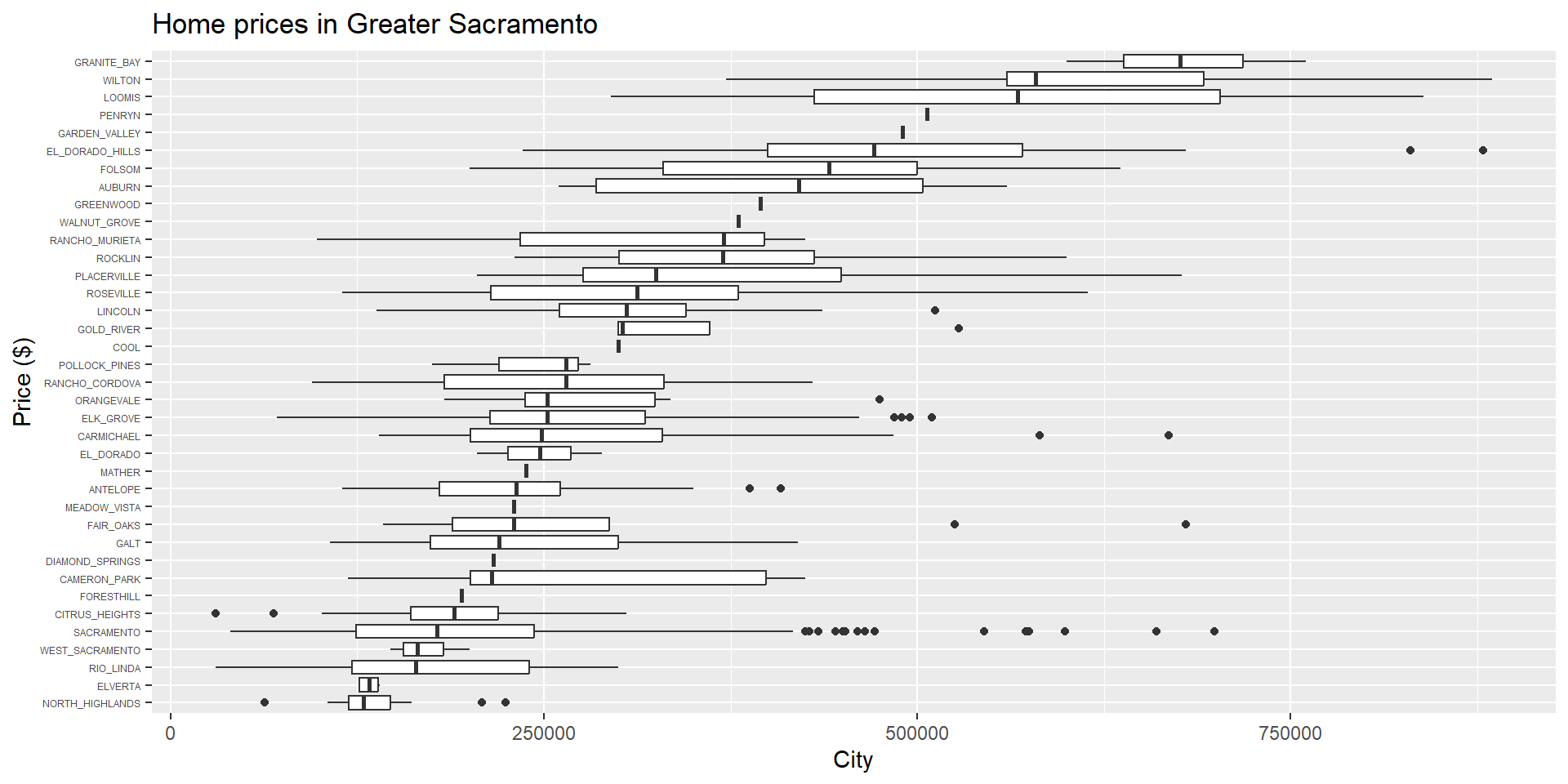

Reorder based on median house prices

Getting a clearer view

Getting a clearer view

Getting a clearer view

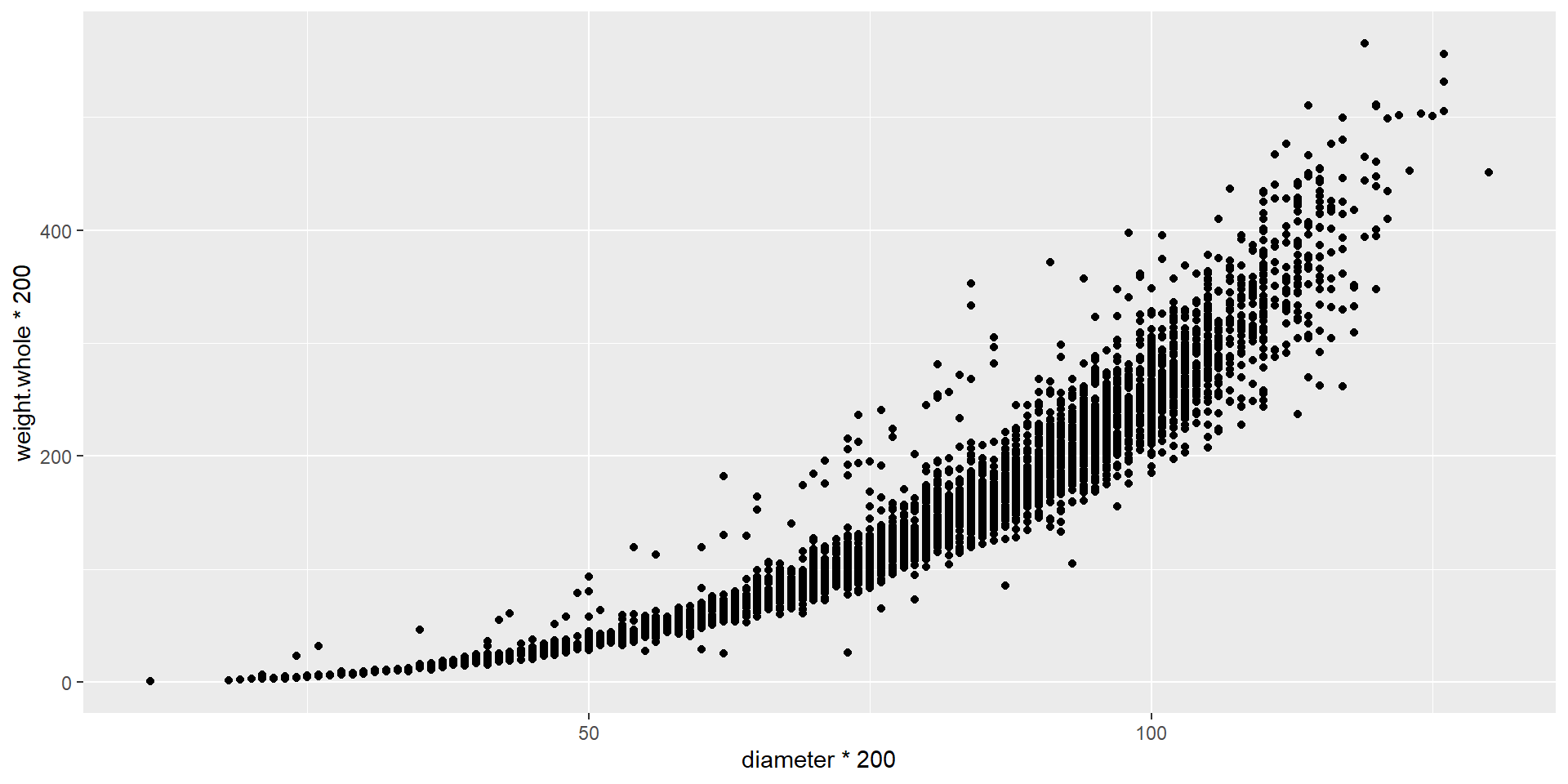

ggplot(data=abalone,aes(x=diameter*200,y=weight.whole*200)) +
  geom_point()

Getting a clearer view

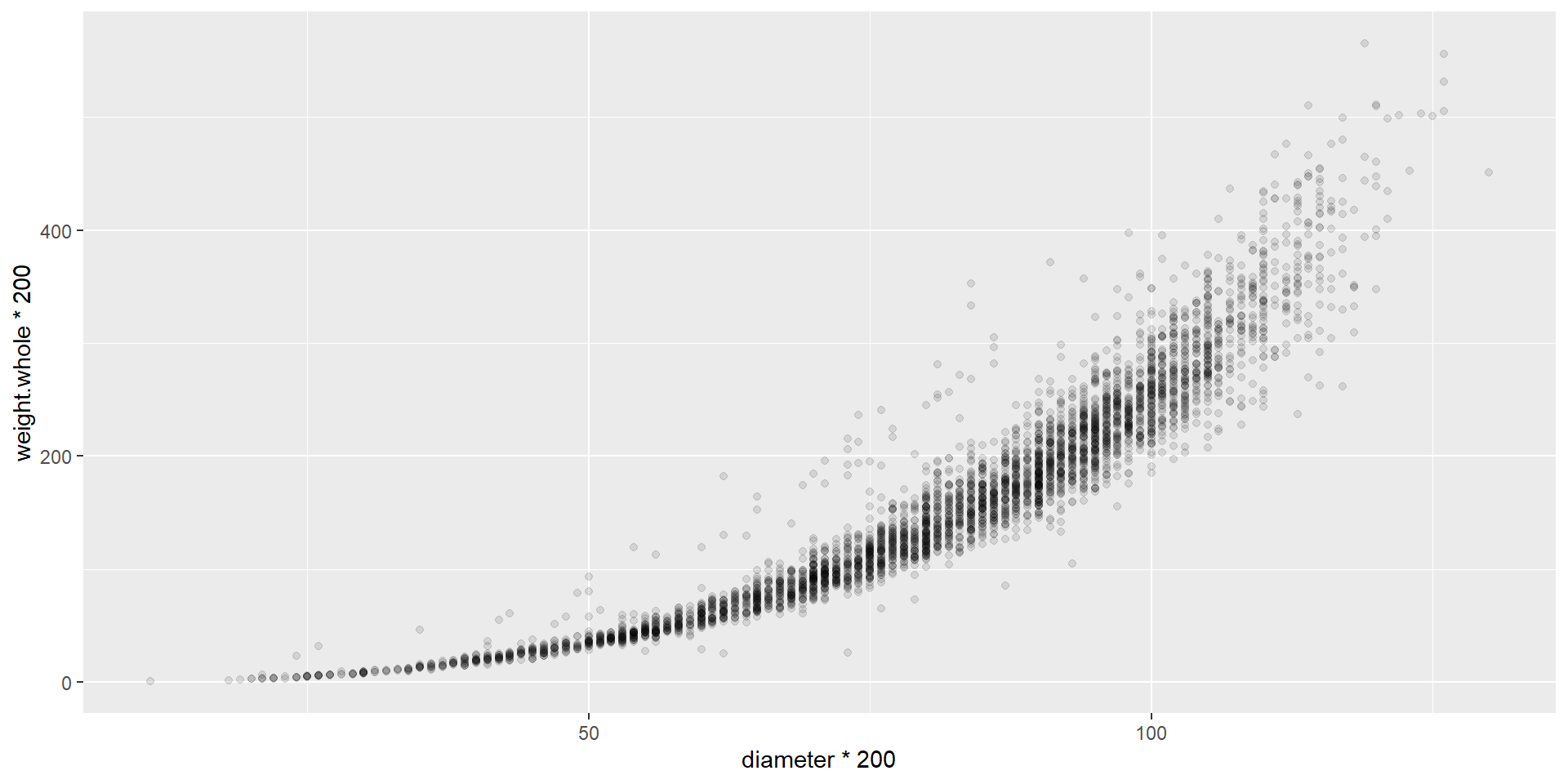

Changing the transparency (alpha)

ggplot(data=abalone,aes(x=diameter*200,y=weight.whole*200)) +
  geom_point(alpha=0.1)

Getting a clearer view

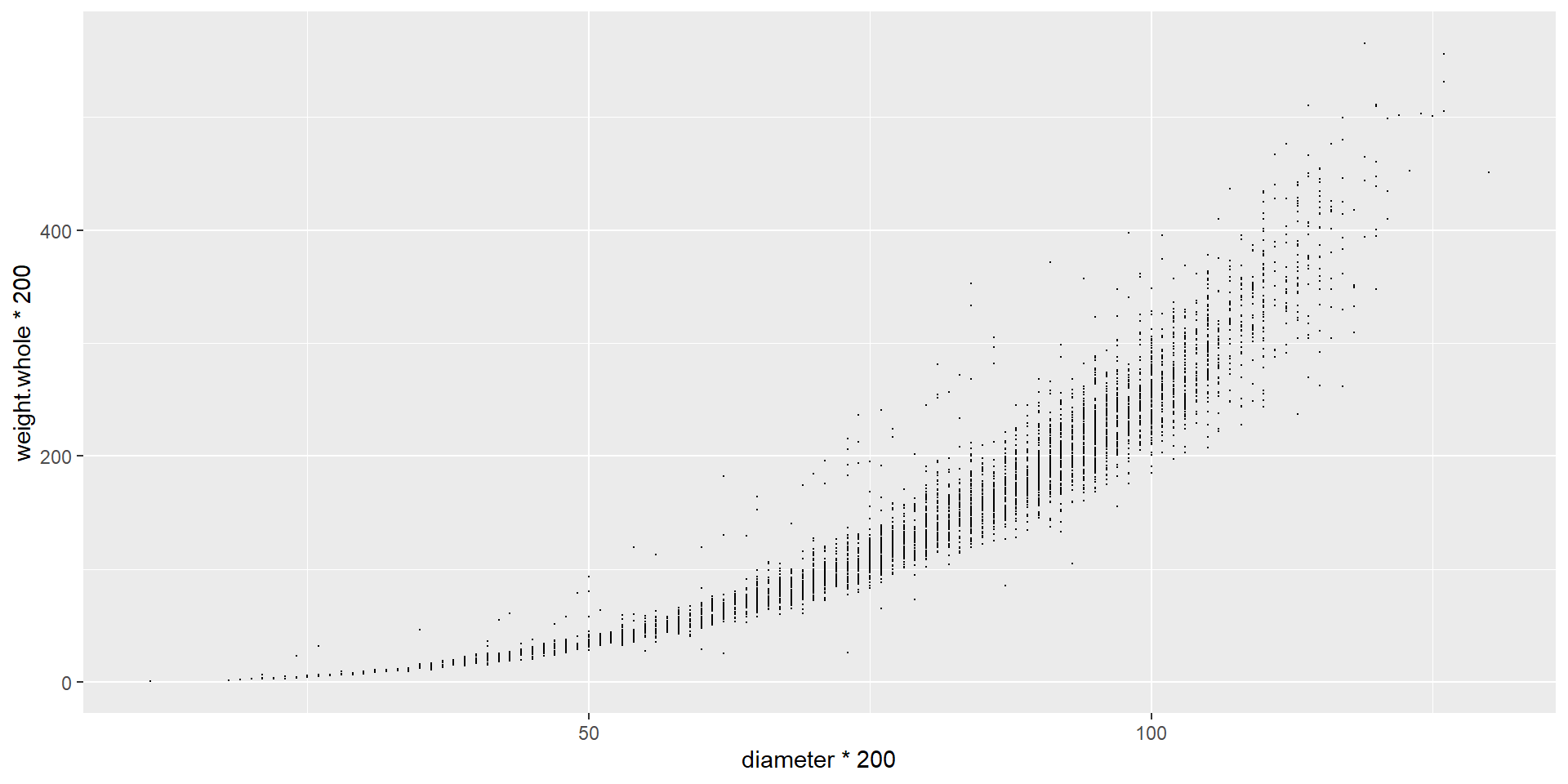

Changing the size

ggplot(data=abalone,aes(x=diameter*200,y=weight.whole*200)) +
  geom_point(size=0.1)

Getting a clearer view

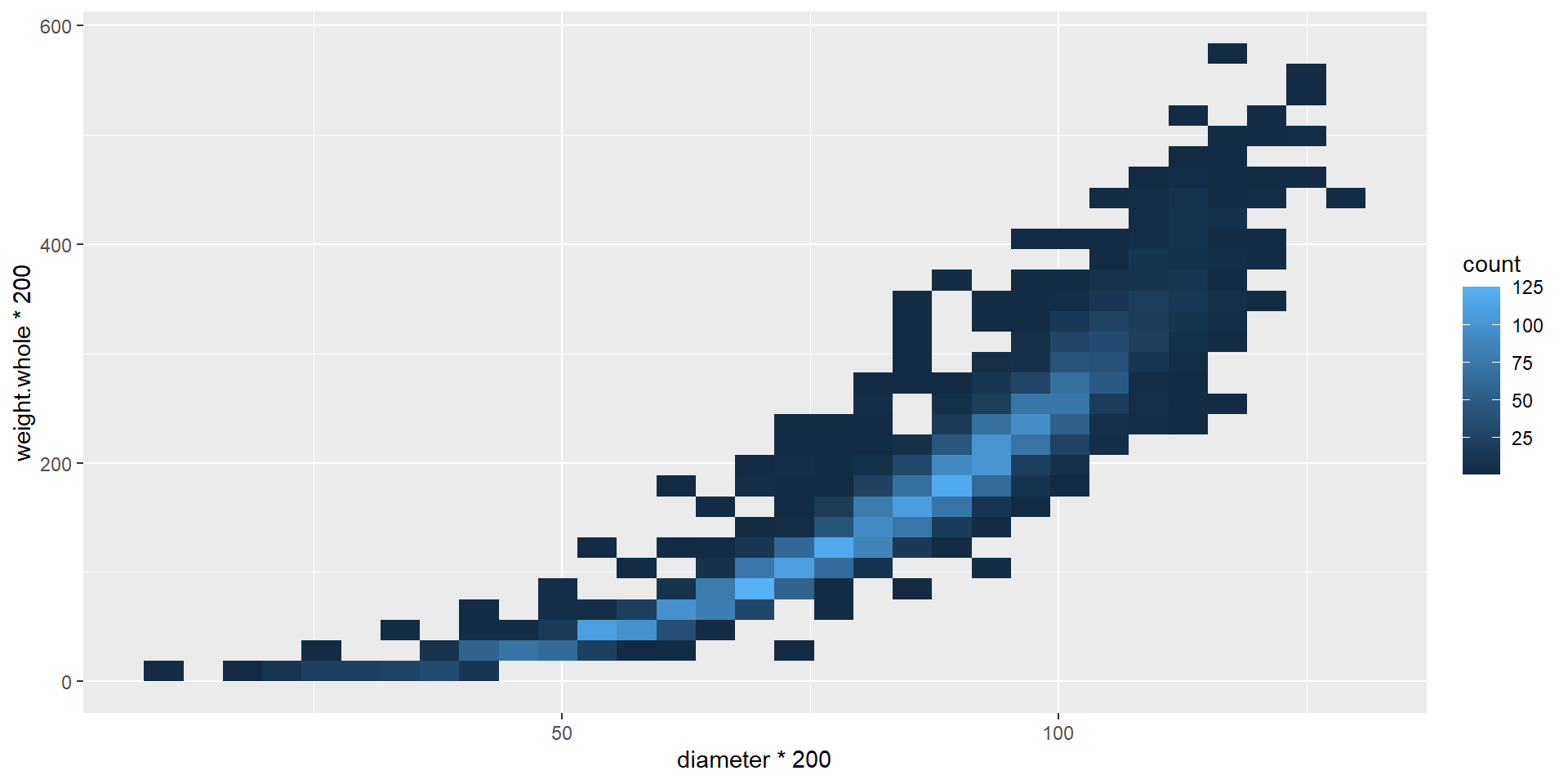

Binning the values (geom_bin2d)

ggplot(data=abalone,aes(x=diameter*200,y=weight.whole*200)) +
  geom_bin2d()

Getting a clearer view

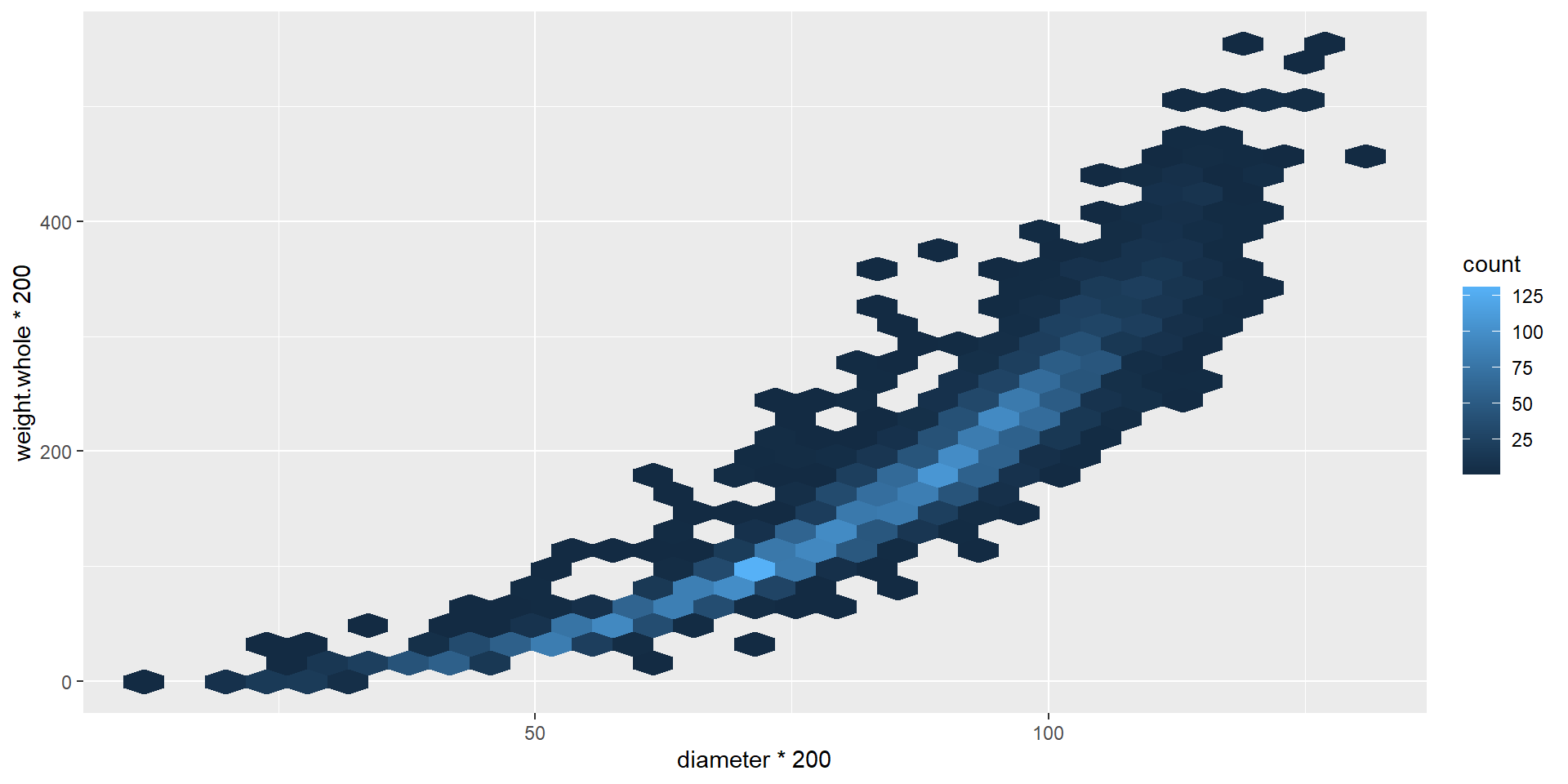

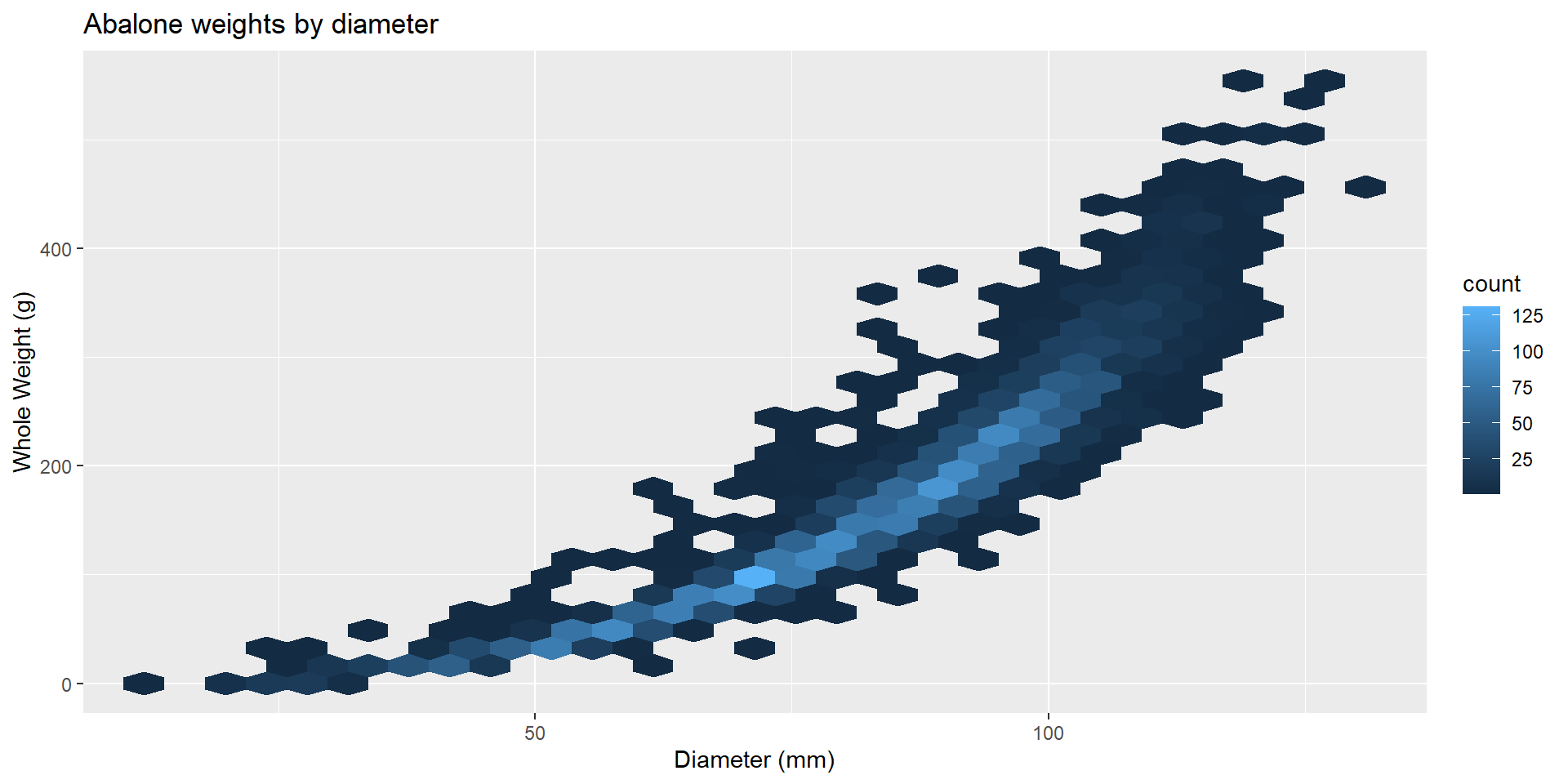

Binning the values (geom_hex)

ggplot(data=abalone,aes(x=diameter*200,y=weight.whole*200)) +
  geom_hex()

Getting a clearer view

Getting a clearer view

Data: Common bully (Gobiomorphus cotidianus) records from New Zealand Freshwater Fish Database

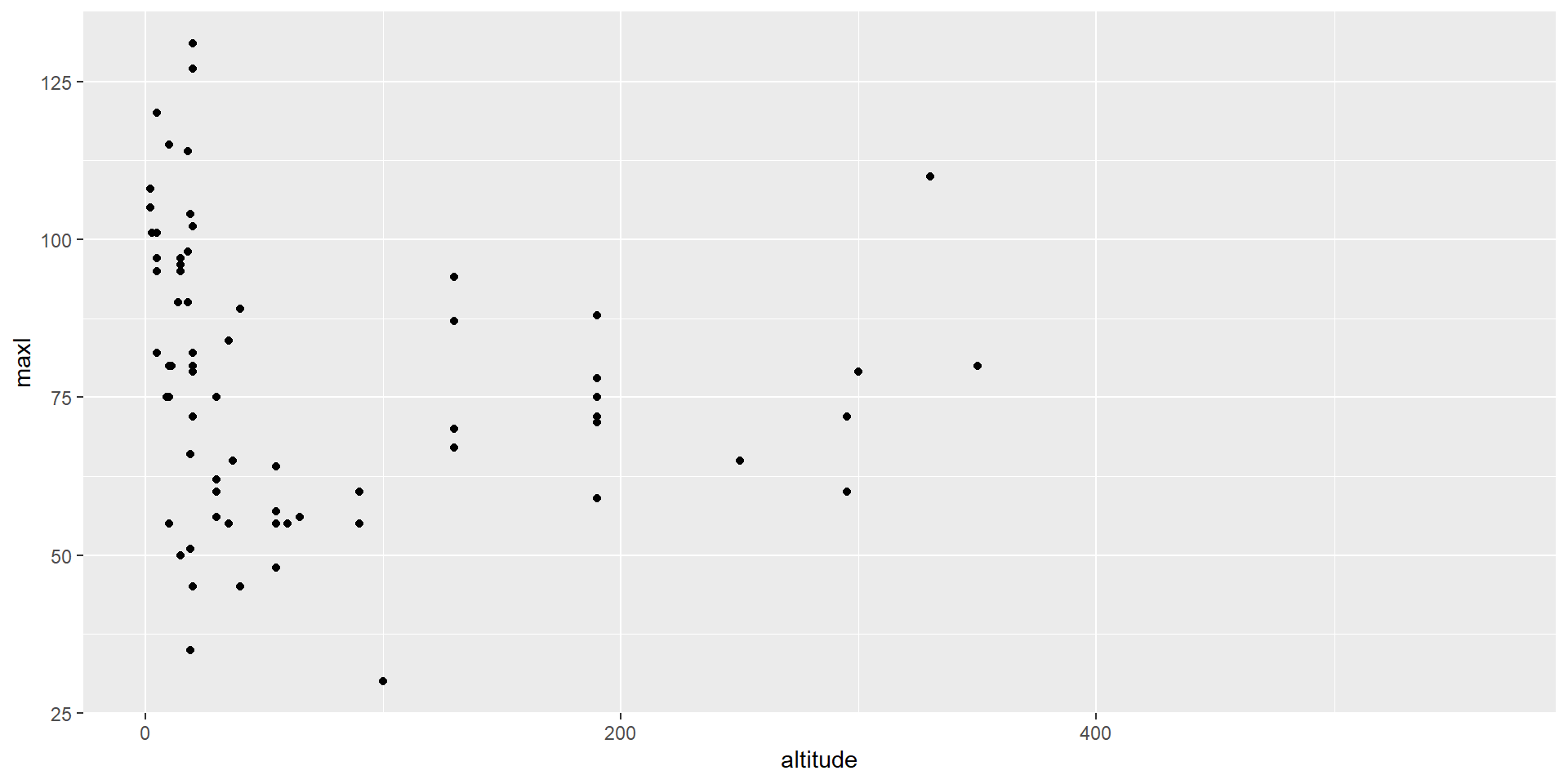

ggplot(data=bully,aes(x=altitude,y=maxl)) +
  geom_point()

Getting a clearer view

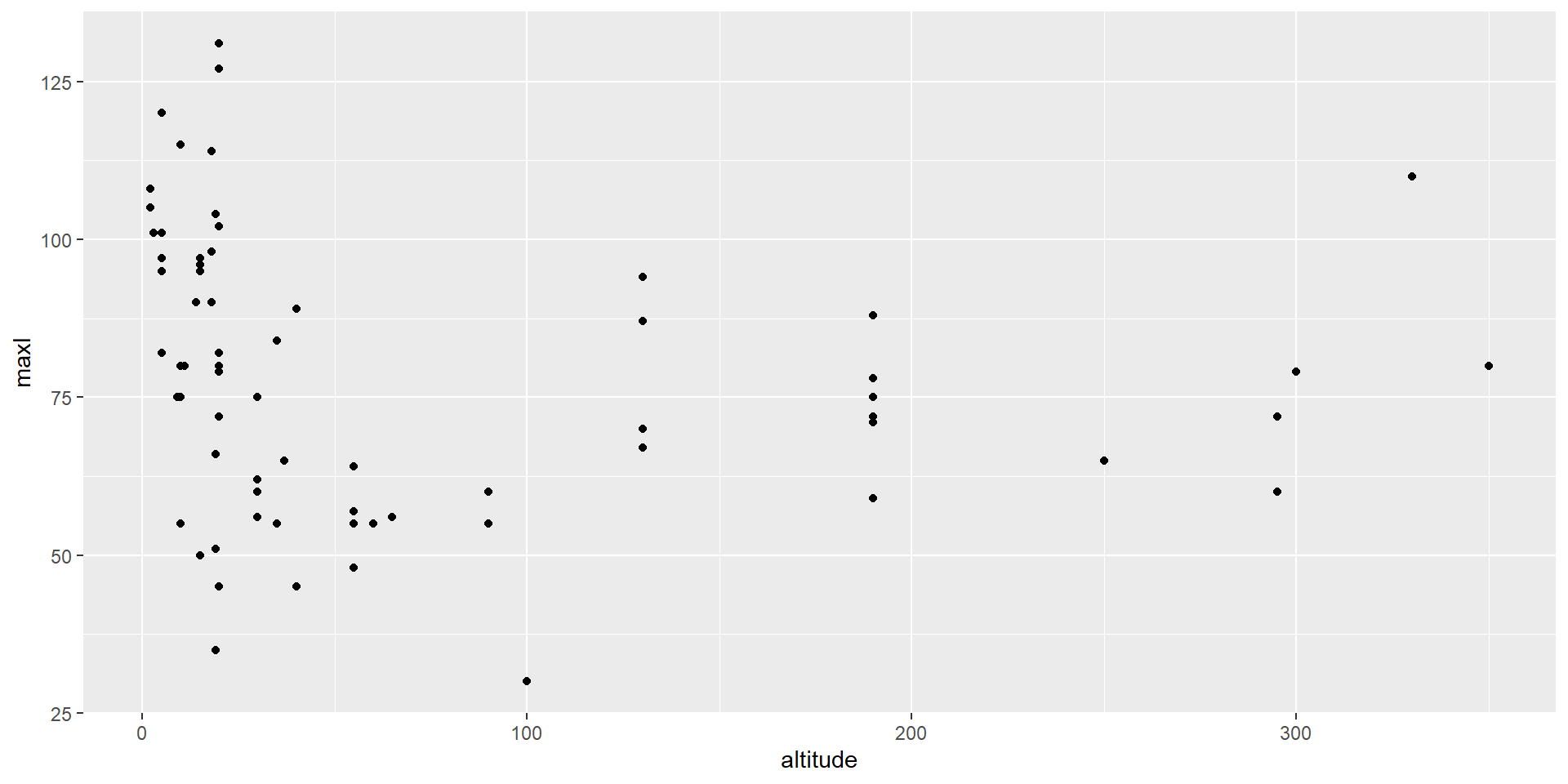

ggplot(data=drop_na(bully,maxl),aes(x=altitude,y=maxl)) +
  geom_point()

Getting a clearer view

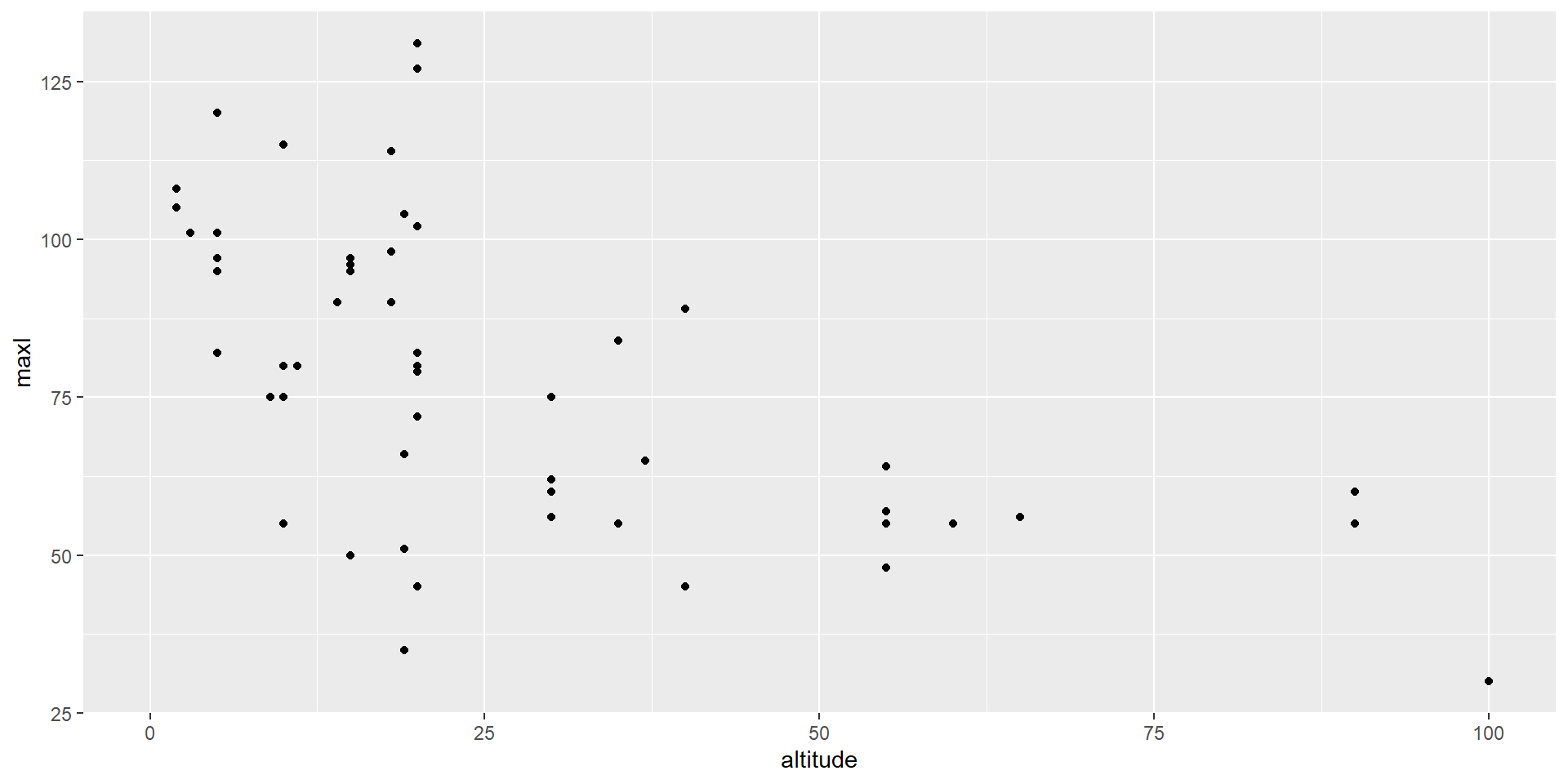

Zooming in

ggplot(data=drop_na(bully,maxl),aes(x=altitude,y=maxl)) +
  geom_point() +
  coord_cartesian(xlim=c(0,100))

Getting a clearer view

ggplot(data=drop_na(bully,maxl),aes(x=altitude,y=maxl)) +
  geom_point()

Transformations

adsf

Getting a clearer view

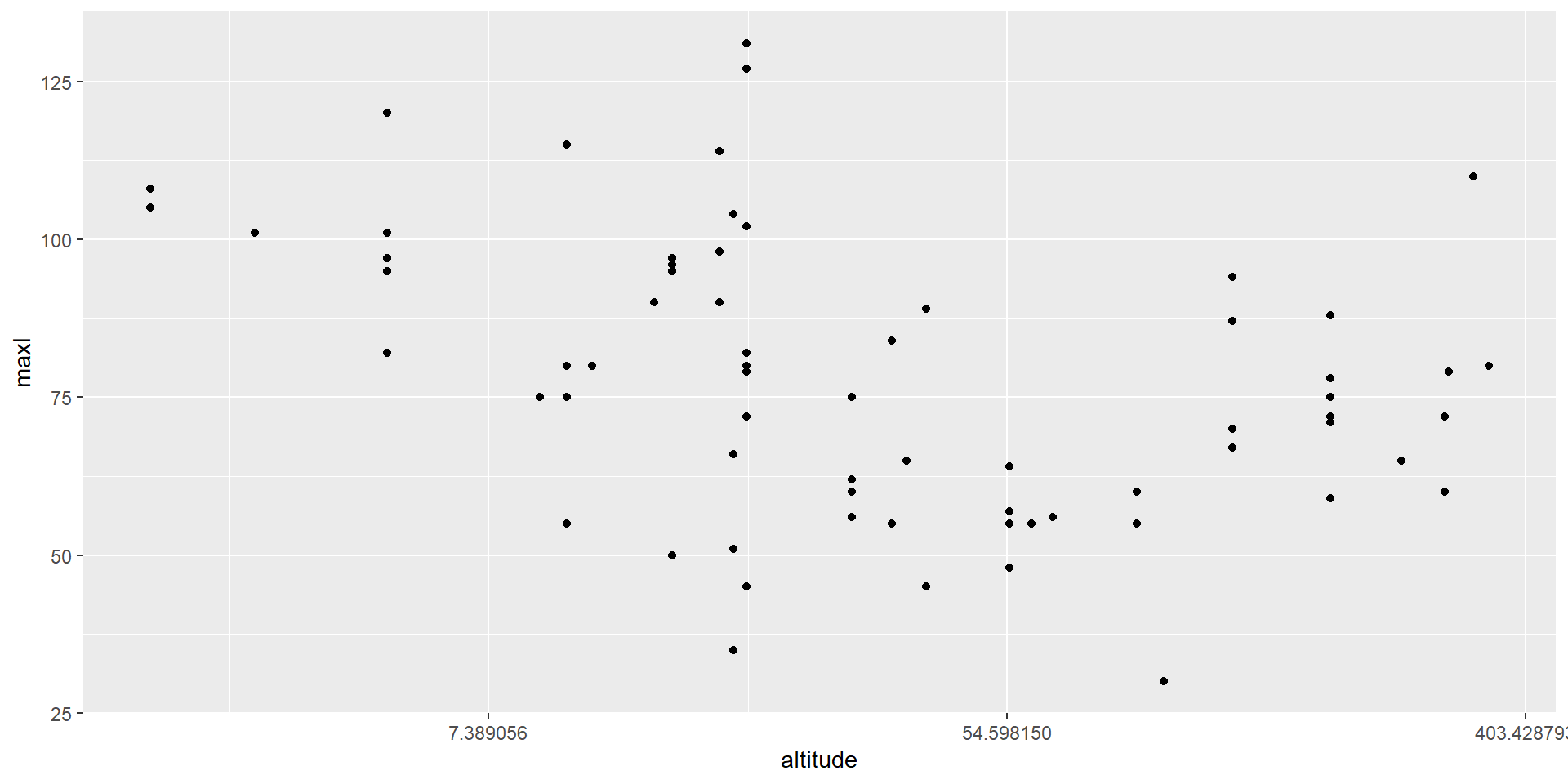

Natural log transformation on x-axis

ggplot(data=drop_na(bully,maxl),aes(x=altitude,y=maxl)) +
  geom_point() +
  scale_x_continuous(trans='log')

Getting a clearer view

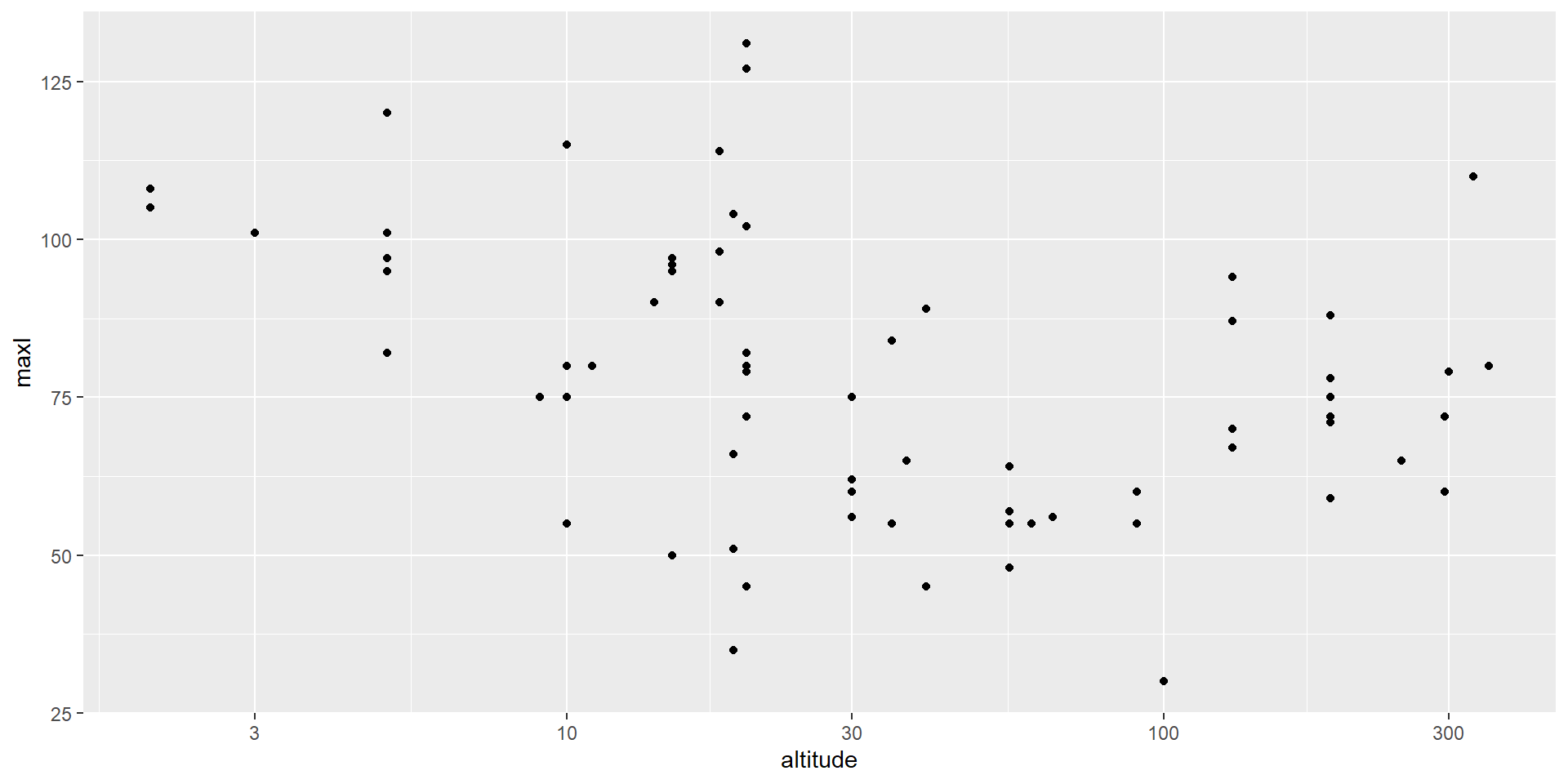

Log-10 transformation on x-axis

ggplot(data=drop_na(bully,maxl),aes(x=altitude,y=maxl)) +
  geom_point() +
  scale_x_continuous(trans='log10')

Getting a clearer view

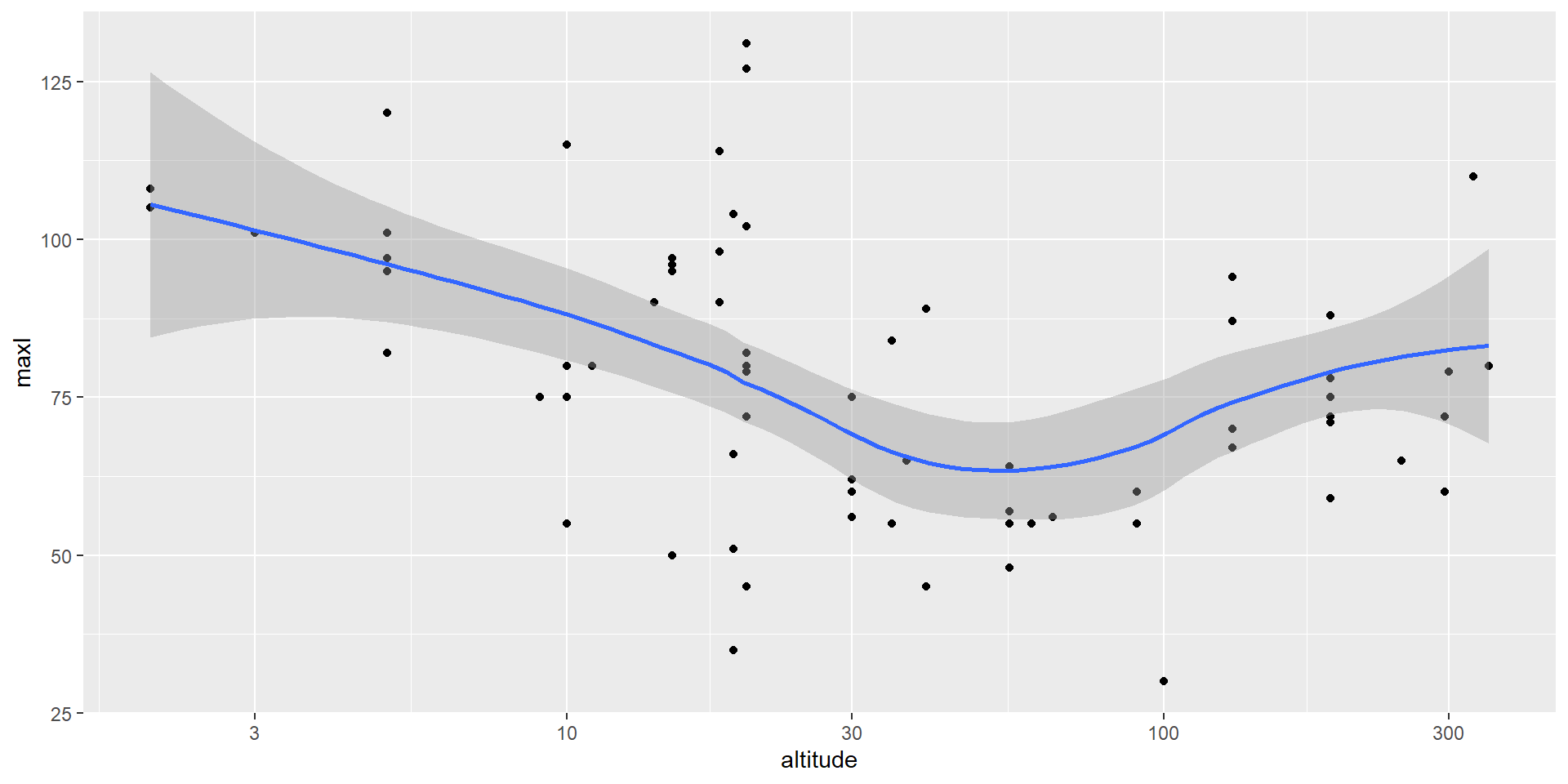

Add a smooth line

ggplot(data=drop_na(bully,maxl),aes(x=altitude,y=maxl)) +
  geom_point() +
  scale_x_continuous(trans='log10')+
  geom_smooth()

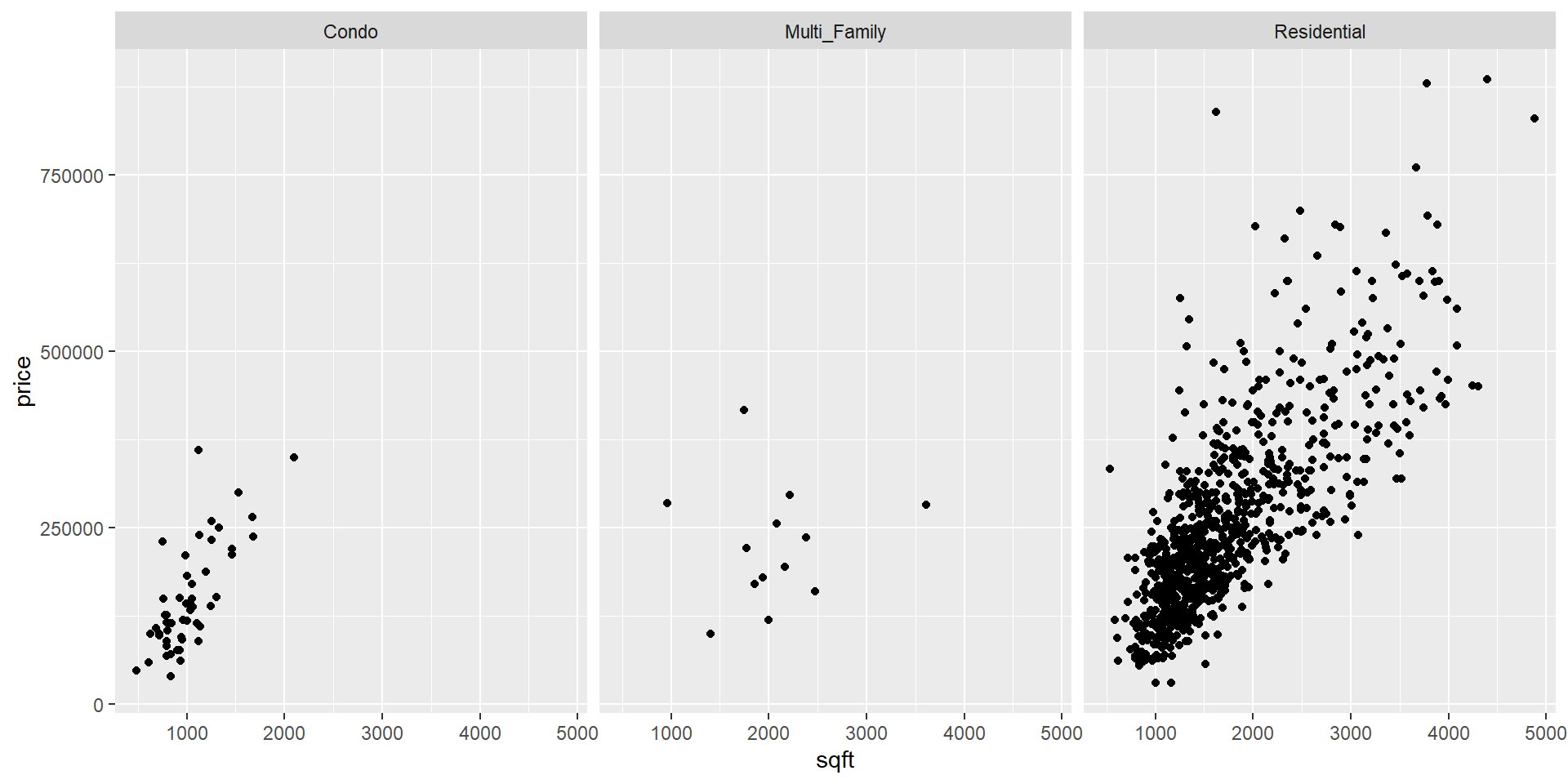

Seeing the bigger picture

Faceted plots can help us view the same pattern across multiple variables.

ggplot(data=Sacramento,aes(x=sqft,y=price)) +
  geom_point() +
  facet_wrap(vars(type))

Activity: Looking and comparing

• In this exercise, you’ll use the scat dataset in the modeldata package (same data, fewer bobcars)

• Use the facet_wrap function to look at relationships (remember to use the vars function to identify your aesthetic mapping):

  • length and diameter by species

  • diameter and mass by species

  • length and mass by month

  • one additional combination of your choice

Next week

• Best practices for data documentation

• Introducing Quarto

• Data ethics and open science models
